Series/Parallel/North/South + PTB Wiring Diagram - Please Review!
Posted: Fri Nov 11, 2022 1:28 pm
by JackFawkes
This is my first draft (and first ever wiring diagram) for the P-Rails that I'm putting in my parts Jaguar.
Since I'm little better than a monkey equipped with logic when it comes to wiring, I'd greatly appreciate anyone who could take the time to scrutinize this design and verify that it functions the way I'm hoping it will.
Thanks!
Jack
Re: Double-check my P-Rails Wiring Diagram
Posted: Mon Nov 14, 2022 1:12 am
by JackFawkes

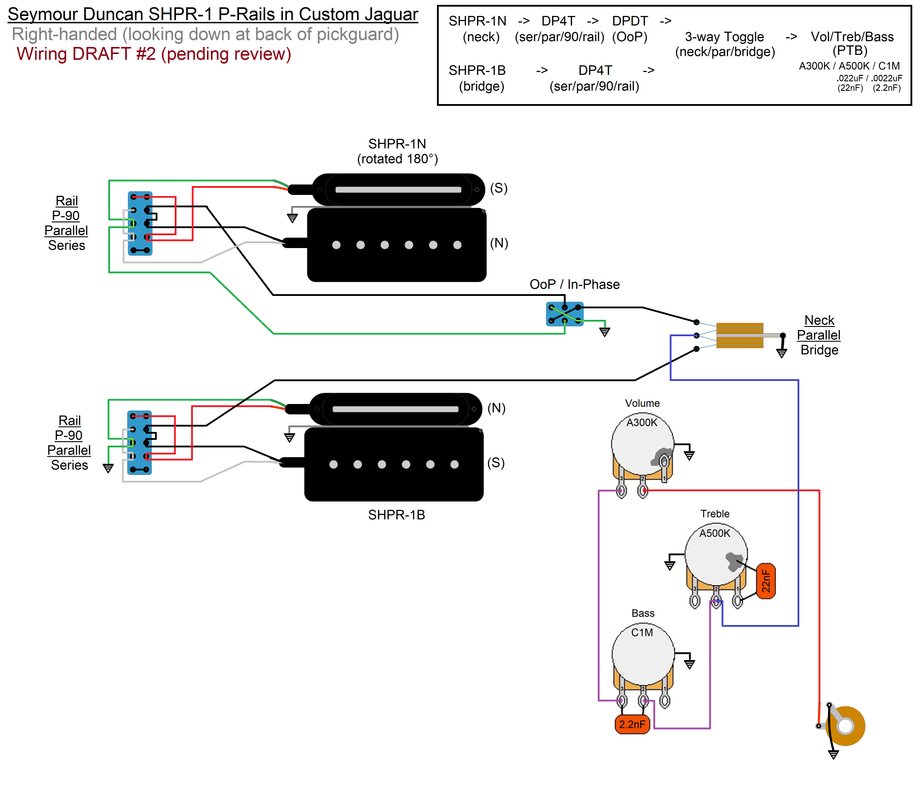

Here's the second draft (now with PTB!) please let me know how it looks.
I especially want to make sure that all of the switches actually function the way that I've indicated, and that the PTB wiring is correct.
When researching PTB diagrams, I found a few slight variations in how the Treble-cut was wired, and also some that put Bass-cut before Treble-cut. Because of those variations, I don't feel completely confident with what I've drawn here.
Re: Series/Parallel/North/South + PTB Wiring Diagram - Please Review!
Posted: Tue Nov 22, 2022 9:27 pm
by Shadoweclipse13
Are you using Seymour Duncan official coil split pickup ring for the P-Rails? I've never used one, but otherwise I've never seen a 3-way switch that has 10 lugs...
Re: Series/Parallel/North/South + PTB Wiring Diagram - Please Review!
Posted: Tue Nov 22, 2022 10:40 pm
by Embenny
Shadoweclipse13 wrote: ↑Tue Nov 22, 2022 9:27 pm
Are you using Seymour Duncan official coil split pickup ring for the P-Rails? I've never used one, but otherwise I've never seen a 3-way switch that has 10 lugs...
The diagram is actually specifying a 4-way switch (DP4T), which I haven't personally seen used before, but makes sense electrically.
Re: Series/Parallel/North/South + PTB Wiring Diagram - Please Review!
Posted: Tue Nov 22, 2022 10:41 pm
by Shadoweclipse13
mbene085 wrote: ↑Tue Nov 22, 2022 10:40 pm
Shadoweclipse13 wrote: ↑Tue Nov 22, 2022 9:27 pm
Are you using Seymour Duncan official coil split pickup ring for the P-Rails? I've never used one, but otherwise I've never seen a 3-way switch that has 10 lugs...
The diagram is actually specifying a 4-way switch (DP4T), which I haven't personally seen used before, but makes sense electrically.
Ah! 4-way would make more sense. My bad! Haha.
Re: Series/Parallel/North/South + PTB Wiring Diagram - Please Review!
Posted: Wed Nov 23, 2022 11:39 pm
by JackFawkes
mbene085 wrote: ↑Tue Nov 22, 2022 10:40 pm
Shadoweclipse13 wrote: ↑Tue Nov 22, 2022 9:27 pm
Are you using Seymour Duncan official coil split pickup ring for the P-Rails? I've never used one, but otherwise I've never seen a 3-way switch that has 10 lugs...
The diagram is actually specifying a 4-way switch (DP4T), which I haven't personally seen used before, but makes sense electrically.
Thank you both for taking a look! No, I don't personally like the look of the Seymour Duncan pickup rings, and the binary tree switching they use seems unintuitive to me... I think the DP4T (on-on-on-on)
4-way slide switches make much more sense.
Jack
